RS-Series N°2

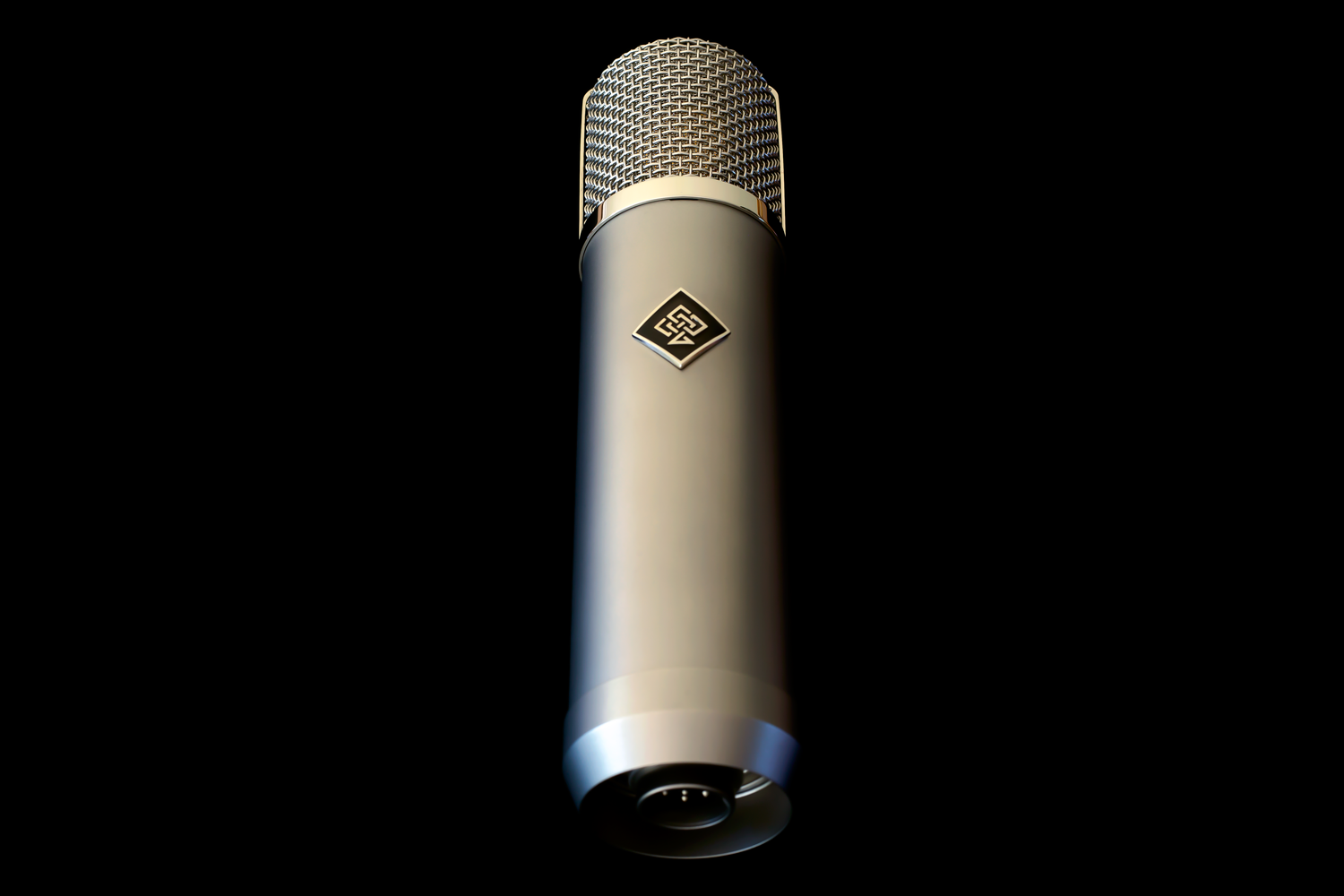

Driven by a quest for excellence in manufacturing, every RS Series product is entirely Swiss-made to the highest attainable standards. The RS2 is the first microphone of this new series, with electronics wired point-to-point, bodywork made from stainless steel, and finishing in nickel and black chrome. Beautiful in both form and sound, it's a design based on our all-time favourite microphone, the 1960's original ELAM 251.

Handcrafted in Switzerland, the RS2 is the highest quality microphone we build, in finish and performance. Every unit is built to order, and can be customized according to customer preference.



Downloads
RS2 Owner's manual

Price
CHF 5'500,00



+ Product Features

• ELAM 251, self-bias circuit
• Campbell CT12 capsule
• Haufe T14/1 transformer
• NOS 6072A vacuum tube
• RS-6120 power supply
• Swivel stand mount
• 10-year limited warranty
• Handcrafted in Switzerland

+ Specifications

• Type: Cond. pressure gradient
• Capsule: CK12, Multi-chambered
• Patterns: Omni, Cardioid, Fig.8
• Freq. Range: 20Hz to 20kHz
• Max SPL: ≈ 130dB
• Noise: 10 dB, A-weighted
• Dimensions: 216 x ø51mm
• Weight: 900gms

+ Options & Settings

• Custom wood-box (optional)
• ECC81 vacuum tube (optional)
• Haun CK12 capsule (optional)
• HT Supply: 120V
• Plate Current: ≈ 0,6mA
• Heater Voltage: 6,3V
• Heater Current: 350mA
• Impedance: 200Ω
